UVGI

Upper Air

POSITIVE INFECTION CONTROL CAN SERIOUSLY BENEFIT YOUR ORGANISATION

IN ENCLOSED SPACES, INFECTIONS ARE SPREAD BY BACTERIA, VIRUSES, MOULD AND FUNGI IN BOTH THE AIR AND ON SURFACES.

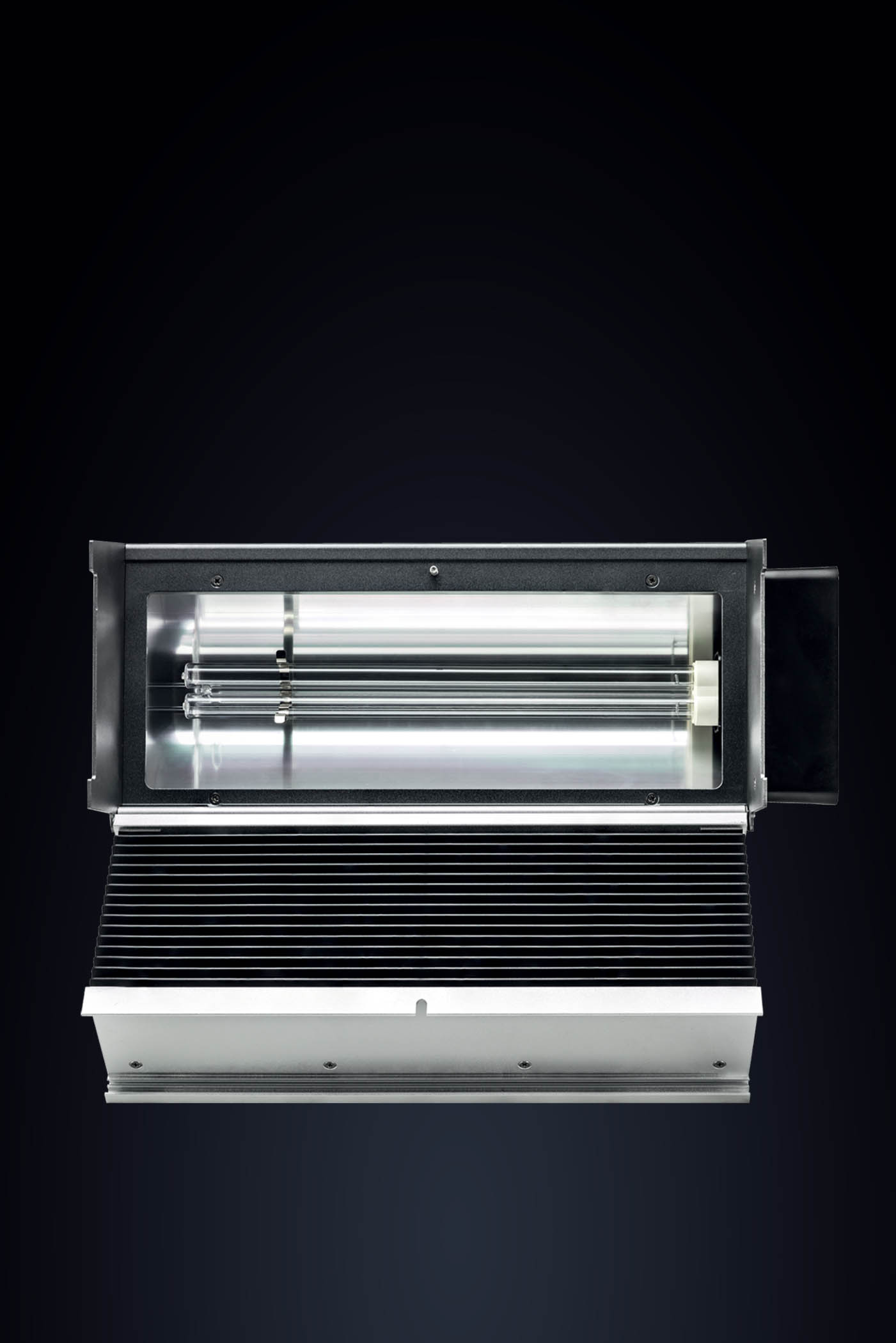

An AIRsteril Upper Room unit uses Thermal convection to draw air into the zone of rays generated by the special louvered / shielded UV lamp and the parabolic reflectors inside the unit.

Would you like to know more:

Contact Us


INFECTION CONTROL

Outbreaks of infections can happen anywhere from hospitals, schools and care homes to cruise ships, airports and the work place. They pose a serious threat to the health of people and organisations. They can occur at any time so all organisations must maintain the highest hygiene standards to protect staff, patients, customers and visitors.

AIRsteril gets to the root cause of the problem by controlling bacteria, viruses and mould, clearing allergens to improve the air quality.

BENEFITS OF USING AIRSTERIL UVGI UPPER AIR

> Control bacteria and viruses
> Improve infection control and hygiene standards
> Reduce cross infection
> Reduce absenteeism

PERFECT FOR USE IN

– Hospitals
– Care Homes
– Consulting Rooms
– Workplaces

Area Size 35m2 50m2
High levels of infection control UVGI
General infection control UVGI

> Reduce cross infection in medical facilities
> Reduce absenteeism and labour costs
> Improve and increase occupancy rates

Bentonite Clay Skin Benefits
HOW OUR SYSTEM WORKS

THE MOST ADVANCED BACTERIA CONTROL TECHNOLOGY OF ITS KIND, USED BY THE BEST PROFESSIONALS IN THE BUSINESS

UVGI units utilise 254 nm Germicidal Irradiation, which kills microorganisms (bacteria, viruses and mould) by disrupting their DNA and removing their reproductive capabilities.

Cleaned air is distributed by thermal convection throughout the area to control harmful bacteria and viruses 24 hours a day, 365 days a year.

Designed for controlling infections in occupied rooms, the Ultraviolet Germicidal Irradiation unit kills up to 99.9% of airborne bacteria, viruses, mould and fungi.

Wall-mounted at ceiling level with its parabolic reflectors and louvers confining the germicidal irradiation to the area above the room occupants’ heads (upper room). Ideal for any enclosed space where infection control is required such as hospitals, schools, offices, food processing plants, GP waiting rooms and care homes.

Bentonite Clay Skin Benefits
SERVICING AND MAINTENANCE

Power must be disconnected before attempting any servicing and only undertaken by a competent individual. All AIRsteril partners have fully trained engineers to carry out all servicing work. The Ultra Violet Germicidal Irradiation range units require a lamp change and internal clean to maintain performance.

Bentonite Clay Skin Benefits
OPERATION AND SAFETY

The unique balance of technology used by AIRsteril has been tried, tested and refined over many years to ensure the best achievable results with every unit supplied.

Installing the UVGI product at the correct height and location is essential to ensure direct exposure to the UV light is not possible, reflected blue light is completely safe.

Power via a plug with an inline switch allows flexible installation and easy connection to existing sockets.

AIRSTERIL IS AN IDEAL SOLUTION

Healthcare environments are particularly vulnerable to bacteria and viruses, incontinence or special medical conditions create high levels of bacteria which can adversely affect patients and staff alike. Cleaning surfaces and fabrics cannot eliminate microorganisms, nor clear odours, a single bacteria cell can multiply to over 8 million in an 8 hour period*; odours prevail and health risks will remain.

Where people congregate there are risks of cross infection; even desks and keyboards can harbour harmful levels of bacteria and viruses. Changing rooms and storage areas are often prone to mould and the associated health risks.

*Certain bacteria such as Ecoli can replicate every 20 minutes, which could in theory leave you with 16.7 million in 8 hours, what we are highlighting is that bacteria breed very quickly and cannot be controlled with traditional methods.

TECHNICAL DETAILS

DIMENSIONS //

460mm (l) x 186mm (w) x 186mm (d) – UVGI


POWER SUPPLY //

220 – 240V 24 watts (via 13A wall plug or switched fused spur) – UVGI


SET UP //

Wall mounted at least 2.2m above floor level


CONSTRUCTION //

Anodised aluminium extrusion


WEIGHT //

5.0kg – UVGI


OPERATION //

Continuous indicated by blue lamp. Requires annual lamp change.

Additional information

Watts

24 watts (via 13A wall plug or switched fused spur) – UVGI

Power Supply

220 – 240V

Set Up

Wall mounted at least 2.2m above floor level.

Weight

5.0kg

Operation

Continuous indicated by blue lamp. Requires annual lamp change.

Construction

Anodised aluminium extrusion.
